CombiBox without feet

• Efficient access from 3 sides; lower part of the box quickly accessible through doors on both sides
• sloping lid made of aluminum checker plate; with lid seal
• Walls made of galvanized sheet steel
• with circumferential wedge seal
• screwed frame construction made of aluminum profiles; anodized
• with anti-slip floor and stop strip; left part of the intermediate floor removable
• Turn-lock closure with T-handle and round cylinder (4x); dust-tight and protected against water jets according to IP65 (EN 60529)
• with lid holder (gas spring)
• vertical compartment divider top / bottom asymmetrical (H=165 mm)
• easy attachment to the loading area; including mounting material
• side doors; opening: width 527 mm / height 382 mm

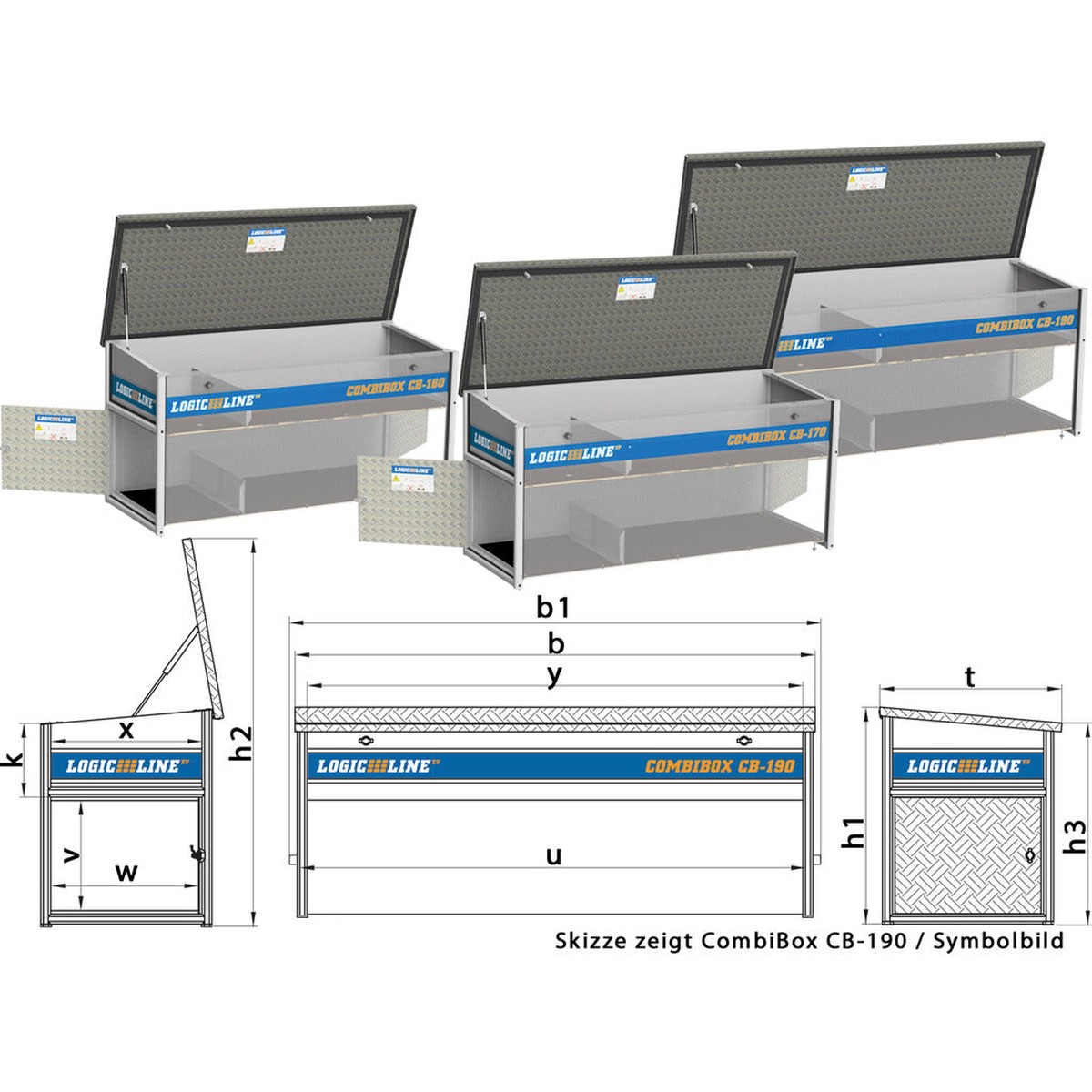

Loading opening at the top:

• CB-160: Width 1,487 mm / Height 552 mm
• CB-170: Width 1,587 mm / Height 552 mm
• CB-190: Width 1,787 mm / Height 552 mm

• h1: 790 mm
• h2: 1395 mm
• h3: 732 mm
• k: 271 mm
• Brand: LogicLine
• t: 664 mm
• front: 382 mm
• width: 527 mm
• x: 552 mm
• max. load: 200 kg
• z: 35 mm
