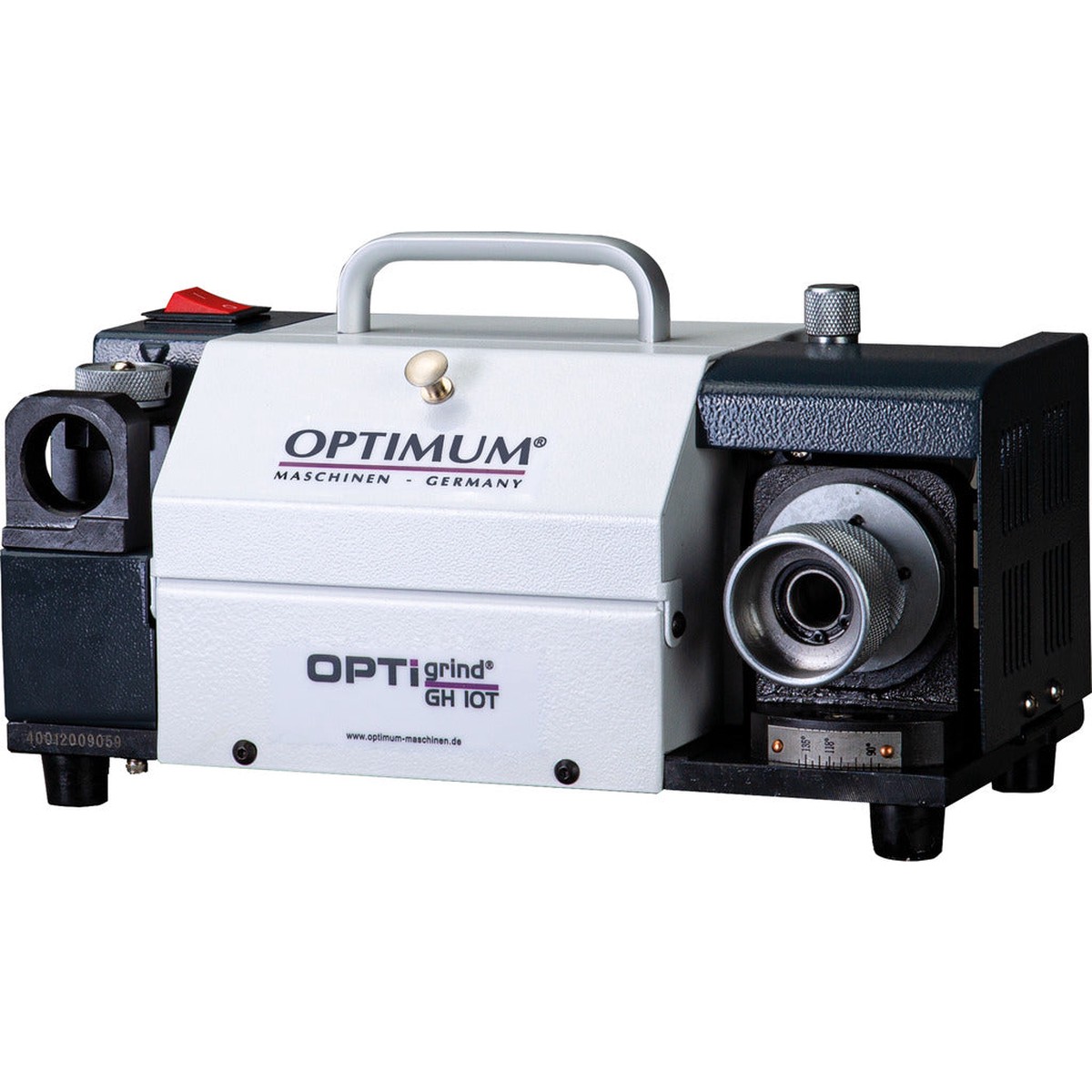

Drill grinder OPTIgrind GH 10 T

• ideal for grinding twist drills
• easy operation for precise and cost-effective grinding of double-edged twist drills
• Drill grinding without prior knowledge – clean, fast and precise
• easy to transport
• Steel disc coated with cubic crystalline boron nitride
• Complete equipment with ER collets inside the machine
• The cutting edges of the drill are fixed in a defined position in the collet holder using the adjustment aid and inserted into the grinding openings in a specified order in order to grind the cutting edges with a short rotational movement of the collet holder
• Grinding capacity drill bit 3 – 13 mm / Angle of tip sharpening 90 – 135

Drill:

• with blunt cutting edges
• sanded and sprayed

Included in delivery:

• 11 pieces ER 20 collets sizes 2 to 13 mm

• Dimensions (l x w x h): 310 x 180 x 190 mm
• Connection voltage: 230 V
• Max. speed: 5,300 rpm
• Weight: 9.5 kg
• Brand: OPTIMUM
• Motor power: 0.18 kW
