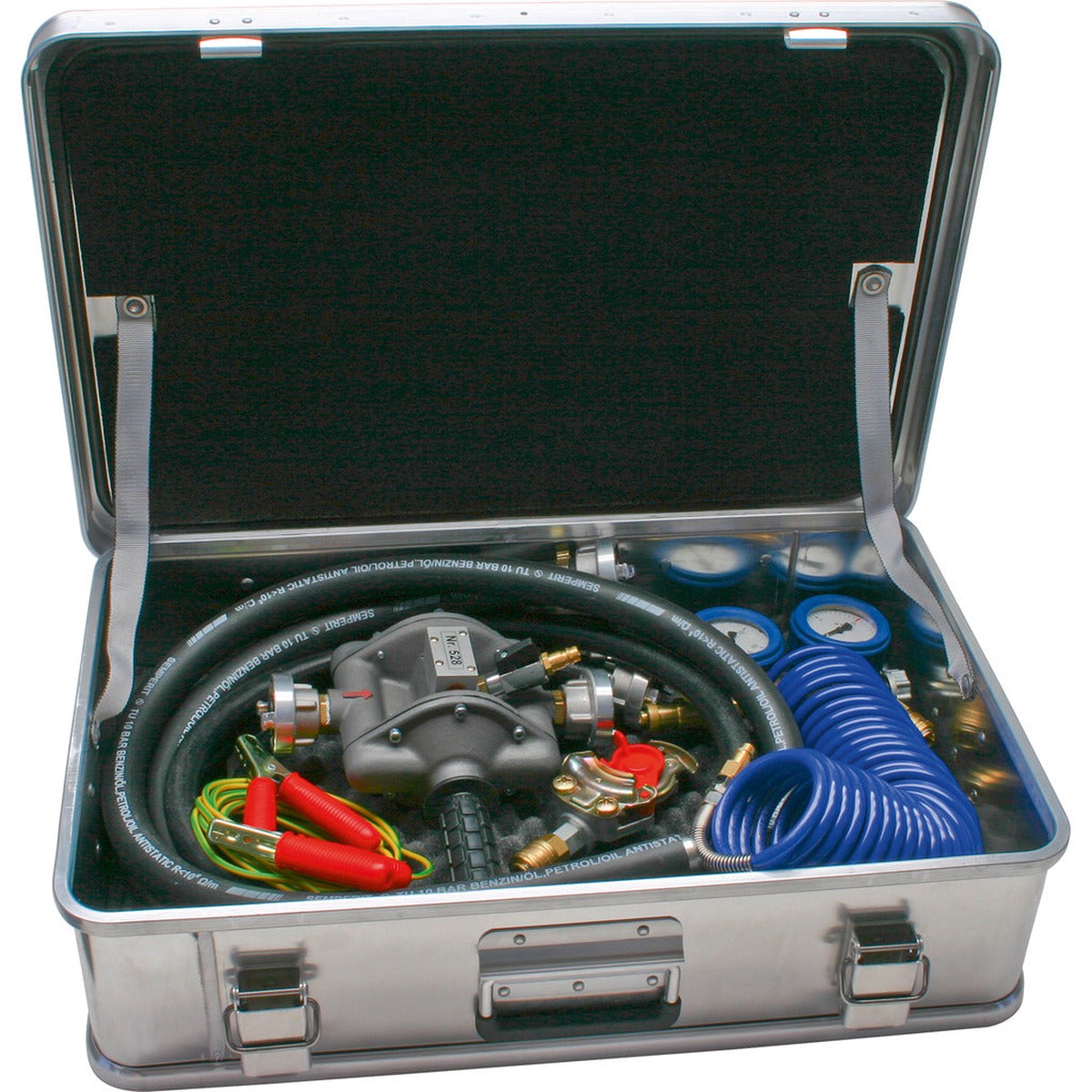

Emergency pump set

In emergency situations, it is frequently necessary to pump out or transfer fuels or other hazardous materials to ensure the safety of emergency personnel and to protect the environment. This double-diaphragm pneumatic pump, which is safely stored in the Dnges Firebox along with all necessary accessories, is used for this purpose. The pump is operated safely and reliably using a 200 bar or 300 bar breathing air cylinder, a compressor, or the truck’s compressed air connection. With a flow rate of 25 l/min, this pump is easily sufficient for most operations.

Features:

• Air-operated double diaphragm pump made of cast aluminum, very robust yet very lightweight
• flexible range of applications
• Conditionally resistant to alkalis and acids
• Pumping capacity of approximately 200-300 liters with one breathing air cylinder
• Completely ready for use, stored in a Dnges Firebox size 3

Included in the set:

• 1 piece pneumatic double diaphragm pump
• 1 piece of pressure hose 1/2 inch, 2 m long
• 1 piece car suction hose, 10 mm, 1.5 m long
• 1 piece of suction hose 3/4 inch, 2 m long, with filter
• 2 pieces of grounding cables with cable lug and contact clamp, 2 m long
• 7-meter spiral compressed air hose
• 1 pressure reducer 300 bar
• 1 adapter for truck compressed air connection
• 1 Dnges Firebox, size 3

• Dimensions (L x W x H): 600 x 400 x 150 mm
• Weight: 12.88 kg
• Brand: Dnges
