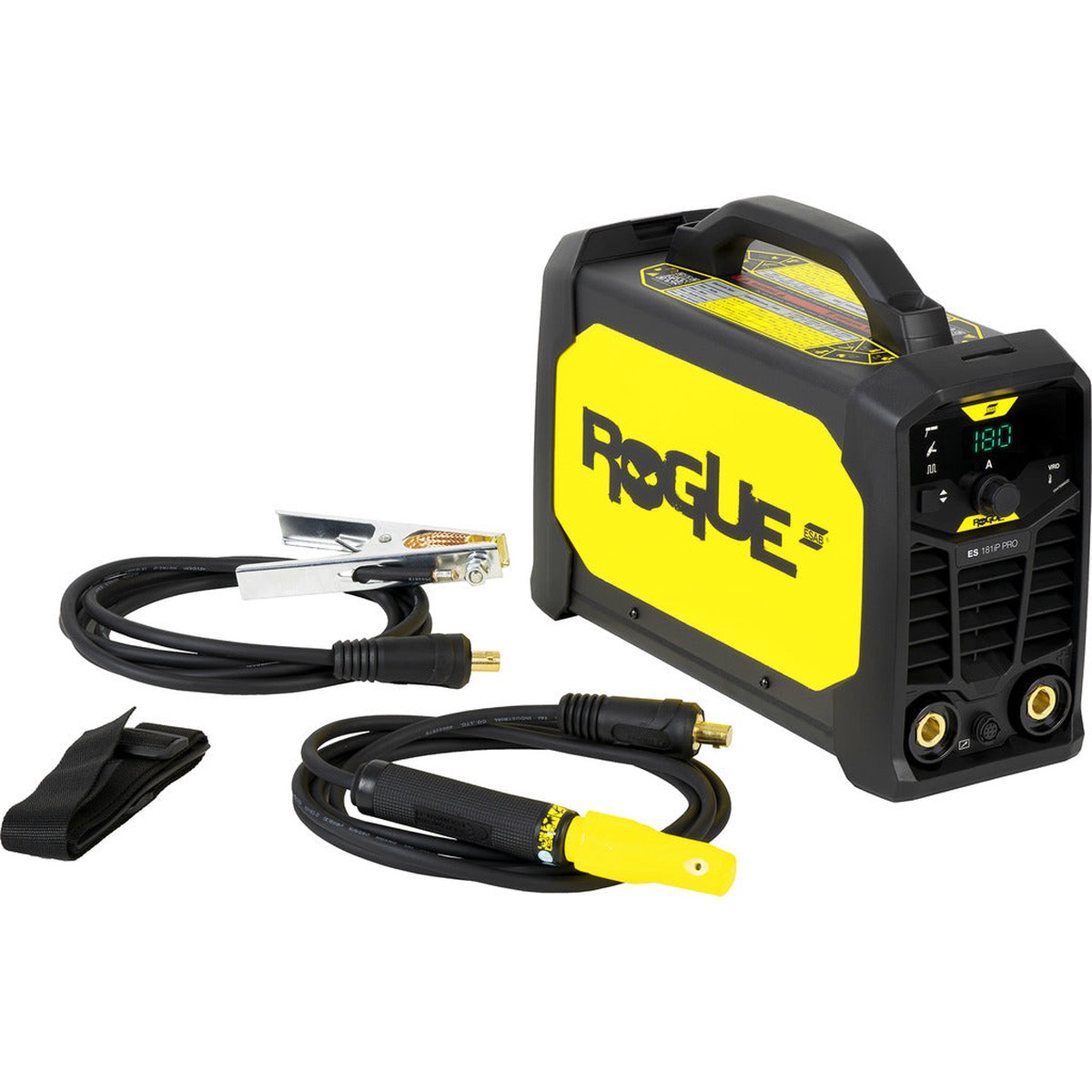

ESAB welding machine Rogue ES 181iP PRO CE / portable

• The Rogue ES 181iP CE is a robust and durable power source for professional welders
• The latest power electronics and digital control technology produce a precise, uniform arc
• PFC technology for a stable arc that can withstand voltage fluctuations even when working with extension cables up to 100 m long
• with adjustable arc force and hot start settings for better control over the arc
• With the Rogue ES you can weld unalloyed steel, stainless steel and cast iron
• A digital microprocessor provides precise control of all arc parameters and ensures first-class welding performance
• suitable for stick electrodes up to 4 mm
• The new stick electrode pulse function minimizes spatter and distortion on very thin sheets; vertical-up welds on thicker sheets and gap bridging are optimized
• Live-Tig ignition support enables trouble-free TIG welding
• Generator compatible – suitable for connection to generators (recommendation 7 kW)
• Excellent mobility – lightweight welding machine with carrying handle for easier transport on the construction site, in the factory hall or in the workshop
• Robust – with protection class IP23S for use in production or on construction sites
• optional analog remote control
• two mains voltages – suitable for 120 V or 230 V
• Open circuit voltage: 78 V DC / Rated power: 6 kVA
• Welding current MMA (230 V): at 25% duty cycle – 180 A / 27.2 V; at 60% duty cycle – 116 A / 24.6 V; at 100% duty cycle – 90 A / 23.6 V
• TIG welding current (230 V): at 25% duty cycle – 180 A / 17.2 V; at 60% duty cycle – 116 A / 14.6 V; at 100% duty cycle – 90 A / 13.6 V
• Current range for 230 V depending on the welding process: 10 – 180 A
• Pulse frequency TIG: 0.2 – 500 Hz / pulse frequency MMA: 0.2 – 100 Hz

Included in delivery: Power source with 3 m power cable and plug, shoulder strap, electrode holder, 3 m workpiece cable and clamp.

• Dimensions (l x w x h): 403 x 153 x 264 mm
• Operating temperature: -10 to +40 C
• Power saving mode: 50 W
• Weight: 8.4 kg
• Brand: ESAB
• Mains voltage: 120/230 VAC 15%, 1-phase, 50/60 Hz
• Protection class: IP23S
• max. welding current: 180 A
