ESAB welding machine Rogue ET 181iP CE / portable

• The Rogue ET 181iP is a powerful and easy-to-use TIG machine with high-frequency ignition
• It is characterized by exceptional arc properties in TIG welding as well as in MMA welding
• The new pulse function for MMA welding facilitates heat input control; this minimizes deformation of thin materials and enables clean welding with less spatter (pulse function up to 500 Hz for better heat input control)
• The TIG parameters of the Rogue ET are easy to set: for example, specify how much gas pre-purge, starting current, current rise and fall time, final current and gas post-purge you want to work with; all this can be done in 2 or
• 4-stroke mode can be used
• In stick electrode mode, Hot Start and Arc Force can be individually adjusted
• High-frequency TIG start prevents contamination of the weld seam
• Excellent mobility – lightweight welding machine with carrying handle for easier transport on the construction site, in the factory hall or in the workshop
• Robust – with protection class IP23S for use in production or on construction sites
• Compatible with the foot pedal for power adjustment (sold separately)
• Open circuit voltage: 63 V DC / Rated power: 8 kVA
• Welding current MMA (230 V): at 20% duty cycle – 170 A / 26.8 V; at 60% duty cycle – 97 A / 23.9 V; at 100% duty cycle – 75 A / 23 V
• TIG welding current (230 V): at 25% duty cycle – 180 A / 17.2 V; at 60% duty cycle – 116 A / 14.6 V; at 100% duty cycle – 90 A / 13.6 V
• Current range for 230 V depending on the welding process: 10 – 180 A
• Pulse frequency TIG: 0.2 – 500 Hz / pulse frequency MMA: 0.2 – 100 Hz

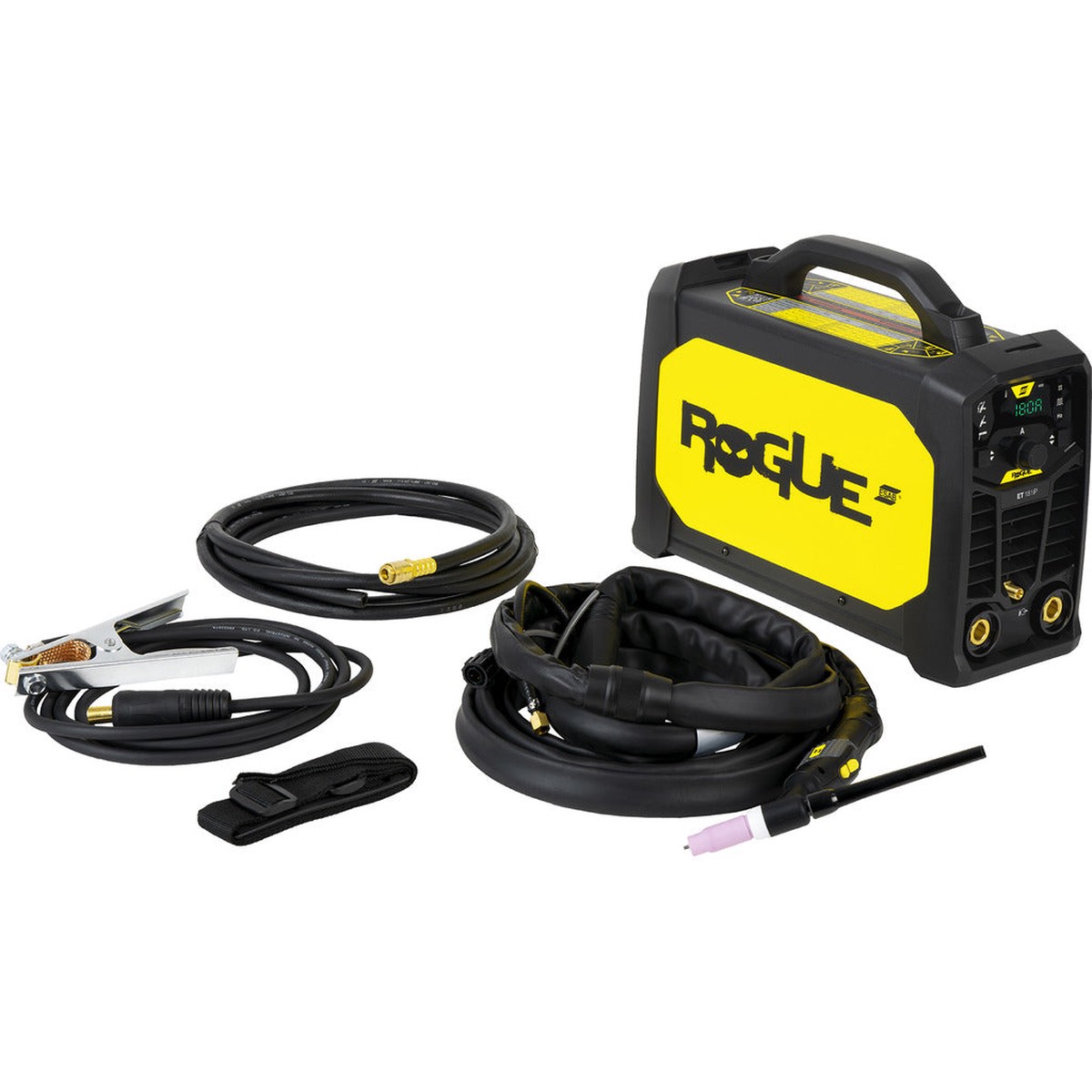

Included in delivery: Power source with 3 m power cable and plug, shoulder strap, TIG torch SR-26 4 m, a set of consumables including tungsten electrode, workpiece cable 3 m with clamp.

• Dimensions (l x w x h): 403 x 153 x 264 mm
• Operating temperature: -10 to +40 C
• Power saving mode: 30 W
• Weight: 8.7 kg
• Brand: ESAB
• Mains voltage: 230 VAC 15%, 1-phase, 50/60 Hz
• Protection class: IP23S
• max. welding current: 180 A
