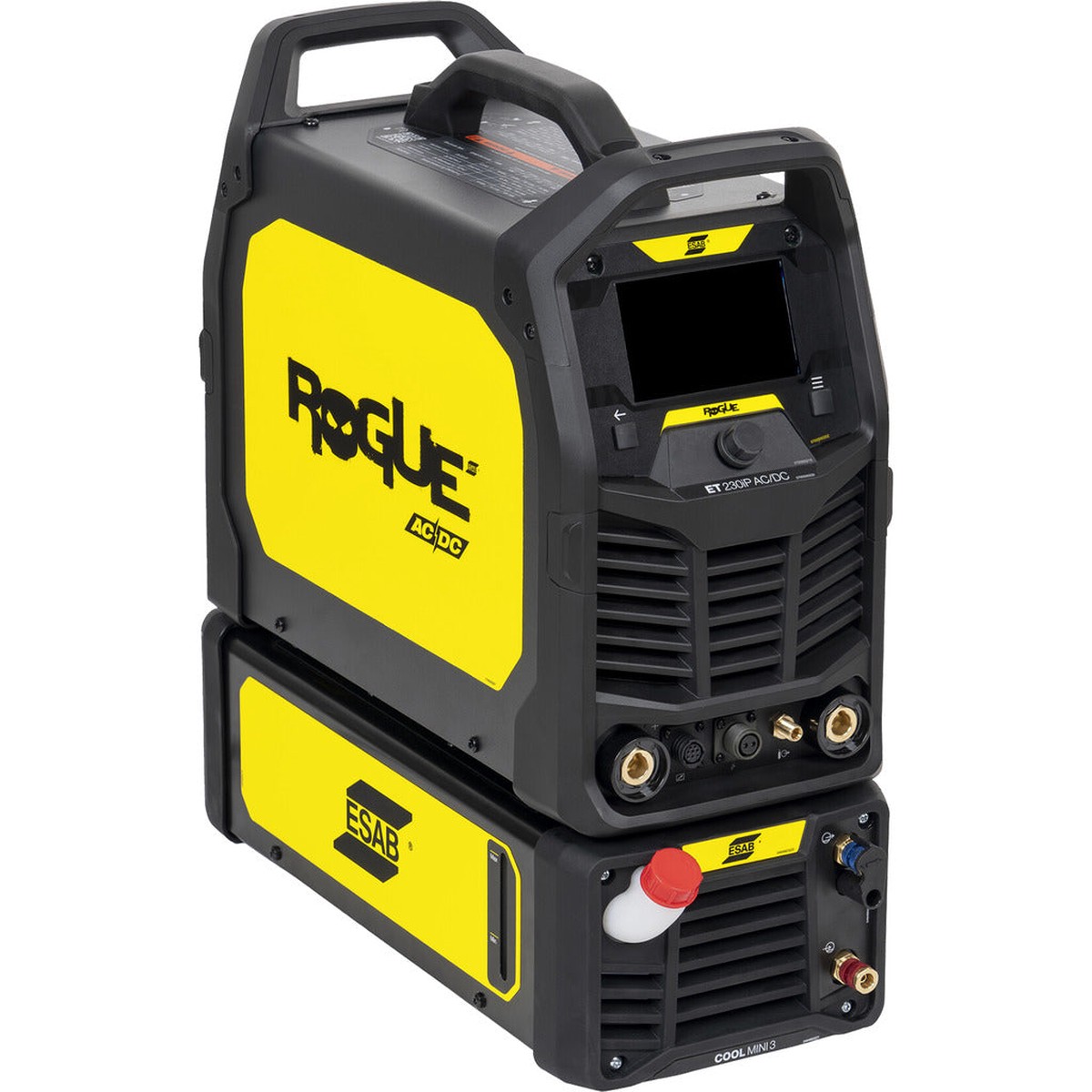

ESAB welding machine Rogue ET 230iP AC/DC water-cooled / portable

• is a portable, high-quality AC/DC TIG welding machine for professional use
• new CoolMini 3 cooling unit with forced activation when using water-cooled burners
• With its extensive parameter options, it is ideal for welding work on aluminum, stainless steel and structural steel
• Settings can be made quickly and easily on the intuitive graphical user interface of the 5-inch TFT display
• the machine can cover a wide range of sheet thicknesses, especially very thin sheets
• Four selectable waveforms (square, soft square, sine and triangle wave) enable optimal heat input (up to 200 Hz)
• The pulse function in TIG welding, AC and DC, allows very good control of the weld pool
• Dual current mode for switching between two welding currents for better control over heat input and weld pool size
• Tungsten electrode diameter and type can be adjusted and the machine ensures optimal start and dome formation during TIG-AC welding
• The durable housing design combines robustness and functionality with multiple lifting points
• Built-in PFC circuit ensures a stable arc, even with extension cables up to 100m
• Welding jobs can be called up via torch button
• modular system with tool-free connection of the trolley
• new Exeor TIG torch included
• Welding current MMA: 115 VAC – 90 A (30%) / 230 VAC – 180 A (30%)
• Welding current TIG: 115 VAC – 125 A (30%) / 230 VAC – 230 A (30%)
• MMA setting range: 115 VAC (10 A – 90 A) / 230 VAC (10 A – 180 A)
• TIG DC setting range: 115 VAC (5 A – 125 A) / 230 VAC (5 A – 230 A)
• TIG AC setting range: 115 VAC (15 A – 125 A) / 230 VAC (15 A – 230 A)
• Open circuit voltage VDC 68 VDC / 10 VDC with VRD activated

Scope of delivery: Power source, 1 x CoolMini 3 cooling unit, 1 x workpiece cable (3 m), 1 x Exeor TIG SR 21 torch (4 m) and 1 x gas hose (4 m)

• Dimensions (l x w x h): 460 x 210 x 380 mm
• Operating temperature: -10 to +40 C
• Weight: 19 kg
• Cooling: water-cooled
• Brand: ESAB
• Mains voltage: 115/230 VAC 15%, 1-phase, 50/60 Hz
• Apparent power: 3.3 kVA (115 VAC) / 6 kVA (230 VAC) kV A kV A
• Protection class: IP23S
• Fuse, slow-blow: 16 A
• Plug: CEE 7/7, 16 A
