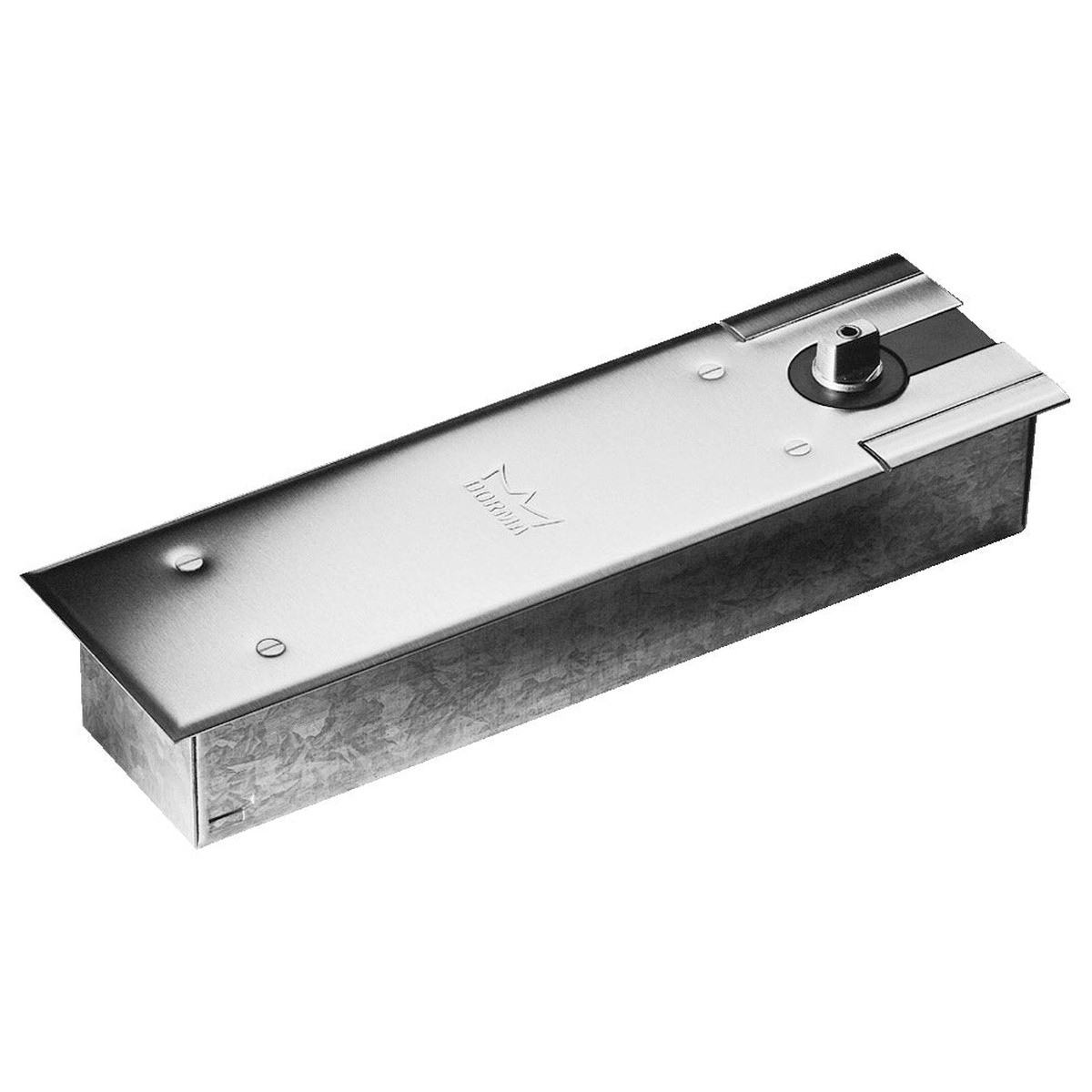

Floor spring BTS 80
Sale!

Floor spring BTS 80

Original price was: $1,455.30.Current price is: $148.00.

SKU: RVR75542909 Category:
  • with quick-release axle and cement box
  • Universal floor spring according to EN 1154, for DIN-L and DIN-R as well as swing doors up to 300 kg door weight
  • Features: Closing force continuously adjustable according to EN 1154, closing speed continuously adjustable via valve 175 -0, integrated, mechanical opening damper (from approx. 80), closing delay continuously adjustable via valve, hydraulic, integrated hold-open device allows the door to be held at any holding angle between 75 and 175 (can be switched off)
  • The start of the locking angle is variably adjustable between 75 and 105 door opening angle
  • Cover plate attachment to the closer
  • Application area: single-leaf right and left doors up to 1100 mm, max. door weight 300 kg
  • Barrier-free construction according to NORM B1600, DIN SPEC 1104 and OIB Guideline 4
  • Version: with locking device
  • Brand: dormakaba
