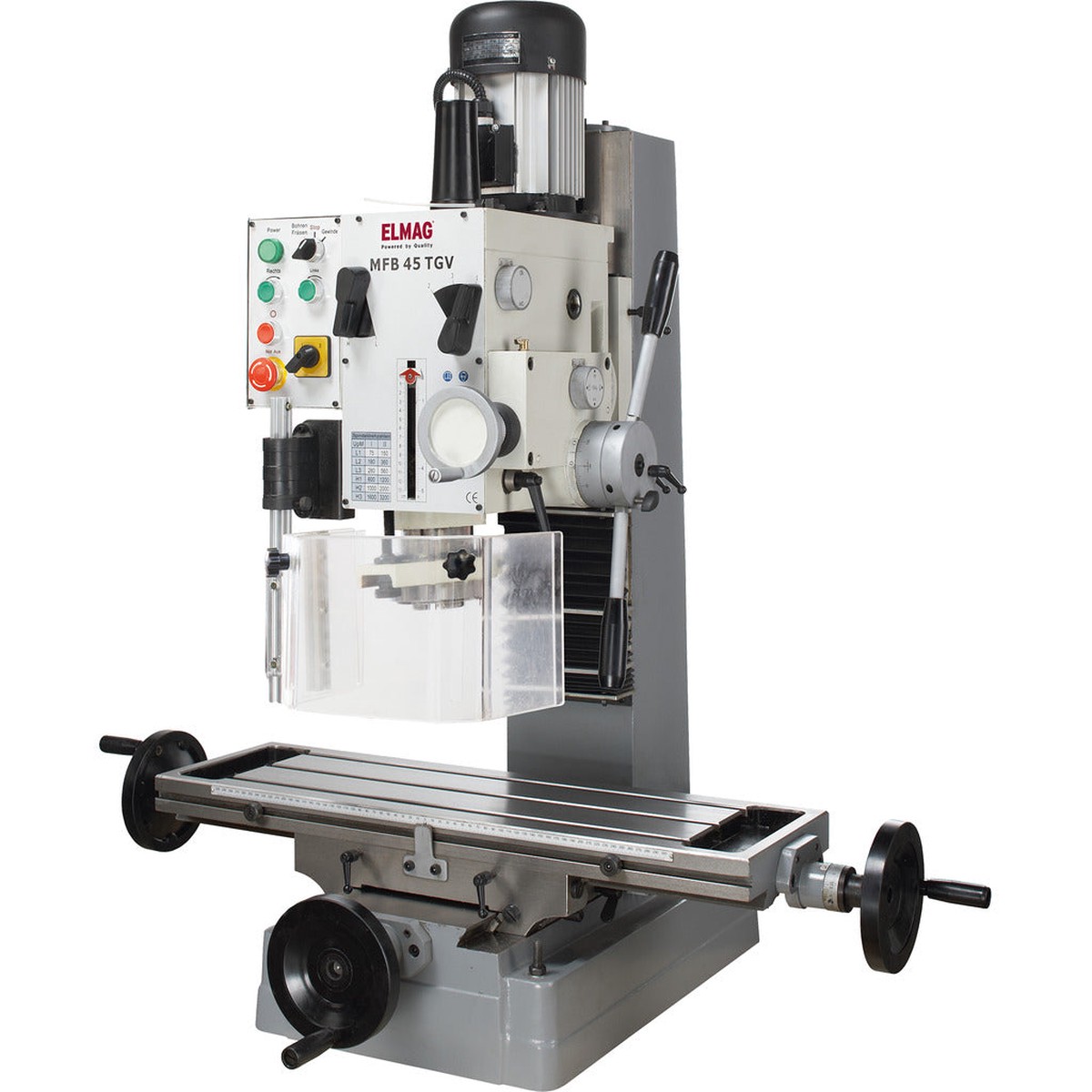

Gear milling and drilling machine MFB 45 TGV

• Milling capacity 80 / 32 mm – table travel 420 x 180 mm
• Cubature 820 x 240 x 470 mm / spindle projection 252 mm
• swiveling milling head 90, with automatic height adjustment
• 2-stage drive motor 1,100 W / 850 W, 400 V
• 12 speeds 75 – 3200 rpm
• Forward and reverse rotation / Thread cutting mode / Precision micro feed
• Milling spindle with precision bearing / milling spindle protective cover
• Tightening spindle for high safety / drilling depth scale and stop
• smooth-running, precise cross table with T-slots and coolant channel
• X-axis cross table with continuously adjustable feed and rapid traverse
• integrated coolant system with return, tank in the machine base
• Emergency stop button / zero-voltage release

Standard equipment:

• Keyless drill chuck B 16, 1-16 mm
• Taper mandrel MK 4 / B 16, IG M16
• Reducing sleeve MK 4 / MK 3
• Reducing sleeve MK 4 / MK 2
• Drawbar spindle M16
• tool set
• Operating instructions / CE

• Table dimensions lxw: 800 x 240 mm
• T-slot size: 14 mm
• Dimensions lxwxh: 1300 x 800 x 1500 mm
• Connection voltage: 400 V
• Drilling capacity: Steel: 45 mm
• Speed: min. 75 – max. 3200 rpm
• Weight: 278 kg
• Brand: Elmag
• Motor power: 1100 / 850 W
• Quill stroke: 120 mm
• Spindle mount: MK-4
• Number of steps: 12
