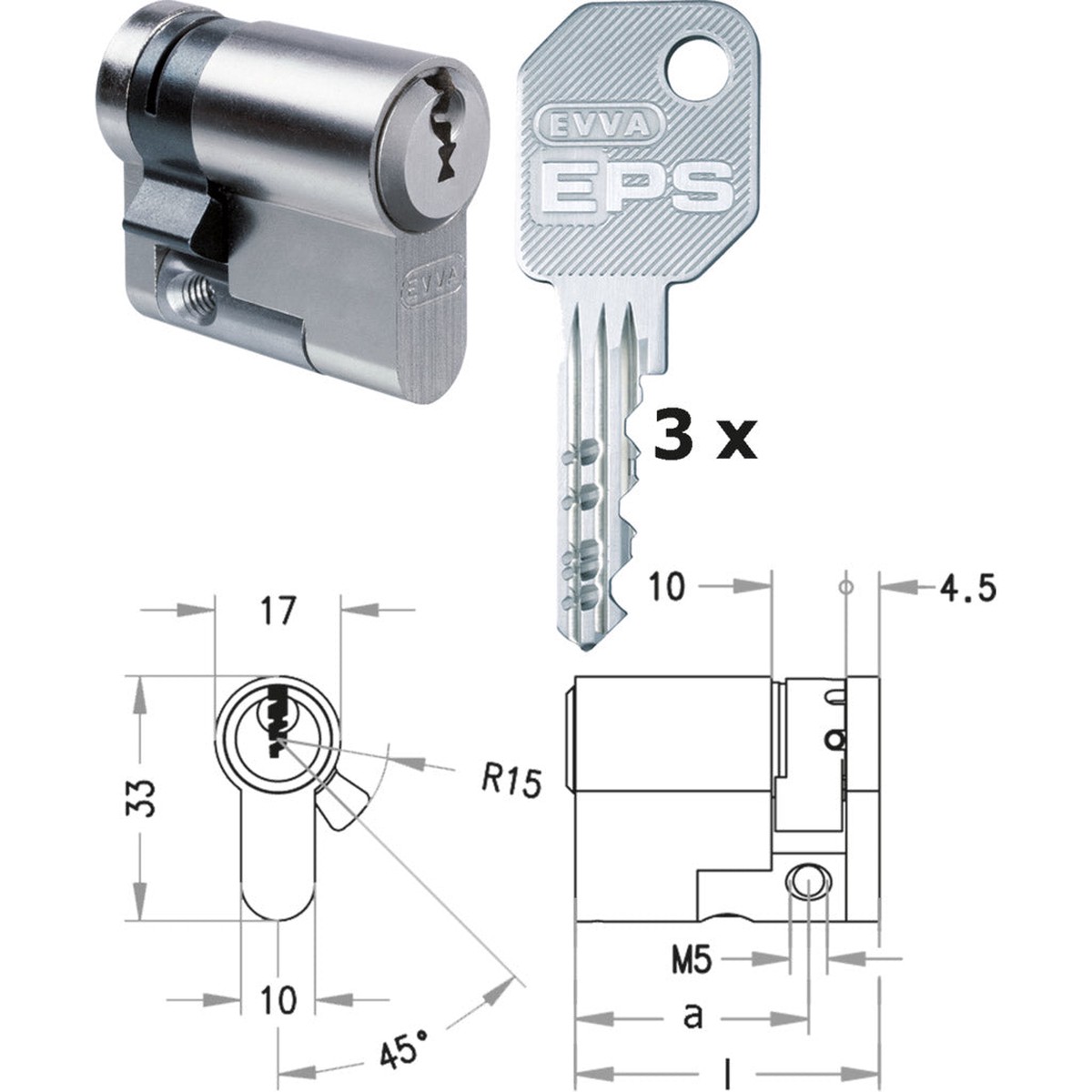

Half cylinder – locking system EPS module / matt nickel

EPS features a patented, multi-overlapping key profile. This crossed profile ensures legal key protection and thus reduces the risk of commercial imitation and copying.
System & Technology:
– spring-loaded pin system with 5 active, spring-loaded query elements
– up to 10 additional query positions
– integrated tamper control of the key in the cylinder
– the double-acting, solid pins ensure high security
– patented longitudinal profile with strong rib structure
– optimized cutting angle in the key
Functional features:
– high wear resistance through the use of special nickel silver keys
– active, double-acting query pins check the locking authorization
– passive locking elements additionally check the key before closing
– lockable from one side with a key
– Locking nose adjustable in 8 positions (45, 90, 135, 180, 225, 270, 315, 360)
– differential locking (vsp)
Security features:
– corresponds to closure security class 6 according to EN1303:2005 (highest class)
– corresponds to attack resistance class 2 according to EN1303:2005 (highest class)
– for fire and smoke barriers EI30, E30 tested according to EN1634-1
Optionally:
– equal locking (glsp)

• Brand: EVVA
• Surface: matt nickel
