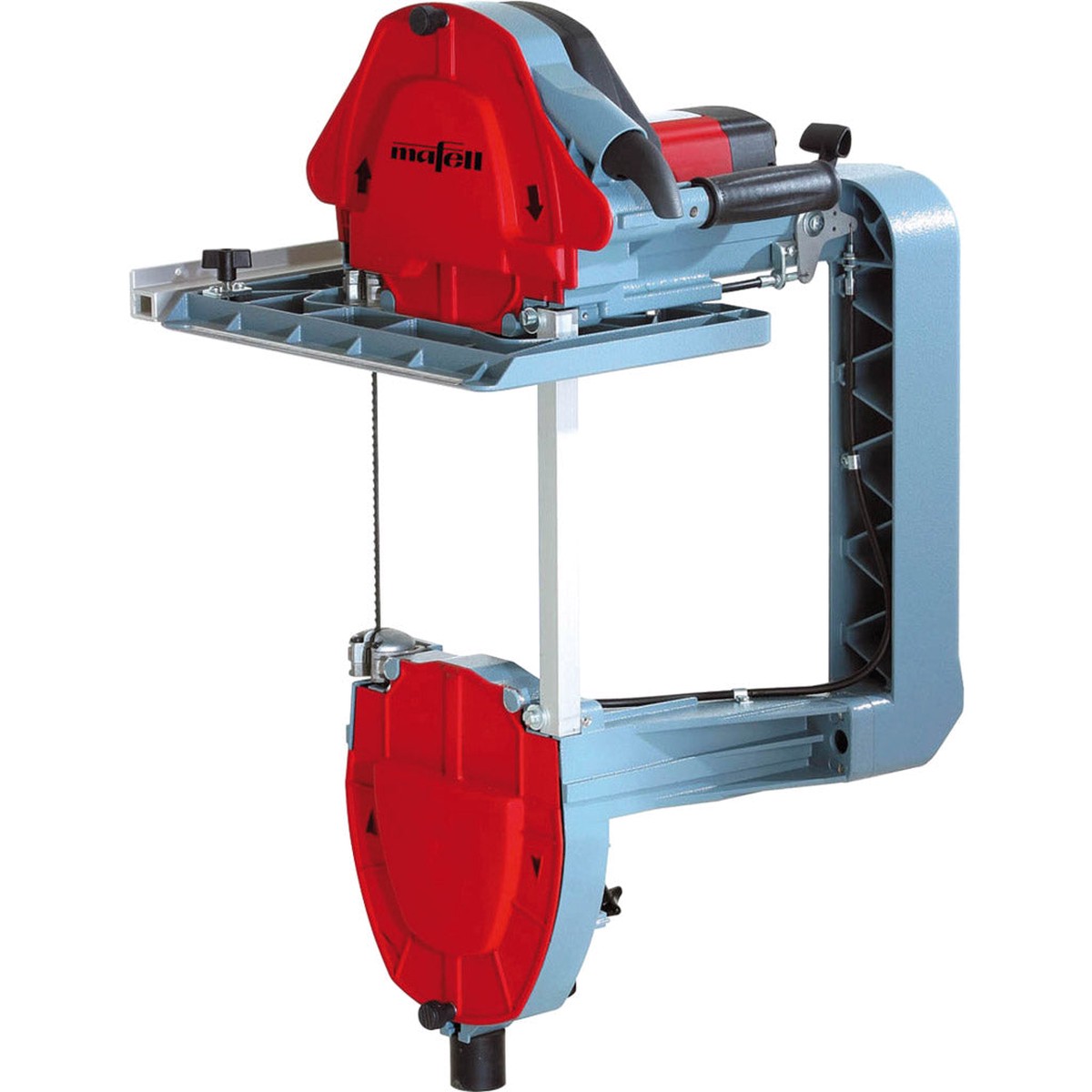

Hand band saw Z 5 Ec

• Thanks to the CUprex high-performance engine and the magnesium die-cast components, it impresses with lower weight, increased power, even higher torque and excellent handling
• For large material thicknesses, the compact Z 5 Ec has a full 305 mm cutting depth
• The precision typical of MAFELL hand band saws also ensures an excellent cutting pattern and perfect squareness of the cuts in the Z 5 Ec
• The cooling air of the high-performance engine is used to blow out the scribe line – no chips at head height and always a clear view of the scribe line
• with ball-bearing saw blade guides for excellent blade running for optimal cutting
• Max. 8 mm saw blades for optimal flexibility when chamfering and profiling purlins and rafters. The back-toothed saw blade facilitates retraction in the wood – especially easy when the saw blade is blocked with the mechanical brake.
• The spring preload of the lower guide roller ensures easy, quick belt changes
• with voltage drop switch to prevent uncontrolled restart after a power failure
• The unique pivoting saw blade guide enables right-angle cuts up to 90 mm deep without the second saw blade touching the material, e.g. when making band saw blades
• 1 hinge side pivoting: 0 – 30

Scope of delivery: Handheld band saw Z 5 Ec, 1 saw blade, 8 mm wide, 4 teeth with back toothing, 1 saw blade, 8 mm wide, 4 teeth per inch, 1 saw blade, 6 mm wide, 4 teeth per inch, 1 handle for two-person use, 1 parallel stop, 1 connecting cable 10 m

• Connection voltage: 230 V
• Input power: 2,250 W
• Weight: 13.6 kg
• Idle speed: 650 – 1,550 rpm
• Brand: mafell
• Cutting depth: 305 mm
