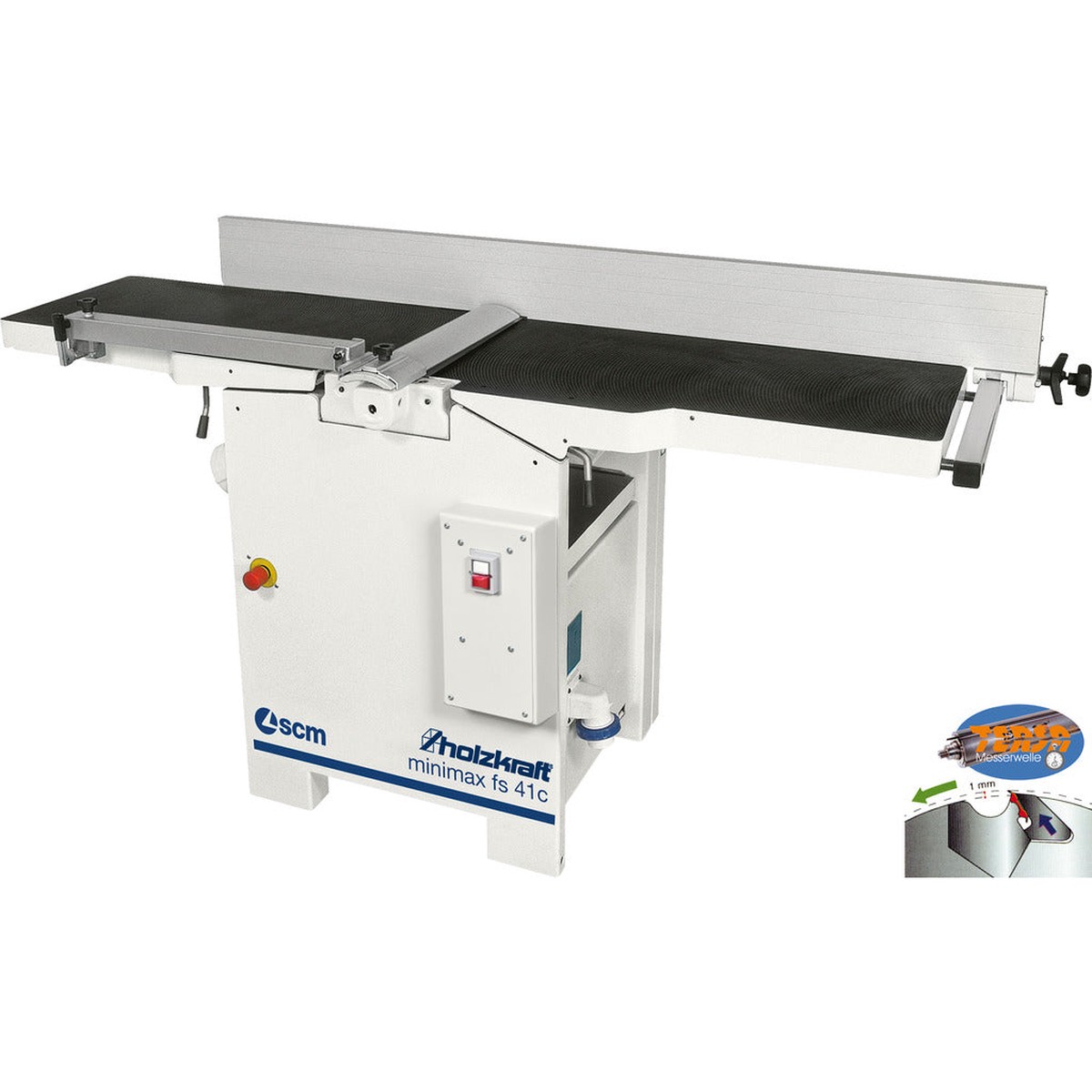

Planer-thicknesser minimax fs 41c TERSA

• with TERSA knife shaft for changing planer knives in seconds
• TERSA planer blade system enables particularly quiet operation
• helically toothed steel feed roller for constant and even wood feed
• The extra-long one-piece planing tables allow easy planing of the workpieces
• large planing stop can remain in its position when opening the planing tables
• rear-opening planing tables
• the high machine weight ensures maximum precision and smooth running
• powerful industrial motor, robust steel/cast iron construction
• Work tables made of grey cast iron, post-annealed and stress-free, thus insensitive and permanently flat
• Table lips for quiet running
• Drive: robust chain drive, steel drive wheels, solid cast iron bearing block
• Total length of the table: 1800 mm / Space required length: 2015 mm / Space required width: 1460 mm
• Length of machine body: 659 mm / Width of machine body: 596 mm
• Extraction nozzle diameter: 2 x 120 mm / Feed speed: 7 m/min

Suction hose connection:

• the suction nozzles of the planer and thickness point in the same direction
• the hose connection is made from only one side
• no hose is needed to reach around the machine

Planing mill:

• Solid kickback protection prevents workpieces from kicking back
• TERSA planer knife shaft with three knives ensures an optimal planing pattern

Material feed:

• helical steel feed rollers for constant and even material feed without marks
• several teeth engage simultaneously for powerful feed
• wear-free in contrast to rubber feed rollers

• Connection voltage: 400 V
• Number of planer knives: 3 pieces
• Working height: 900 mm
• Width: 990 mm
• Weight: 330 kg
• Planing width: 410 mm
• Planer shaft speed: 5200 rpm
• Planer shaft type: TERSA
• Planer shaft diameter: 72 mm
• Length: 2015 mm
• Brand: holzkraft blue
• Engine power: 5 kW
• Chip removal: 4 mm
