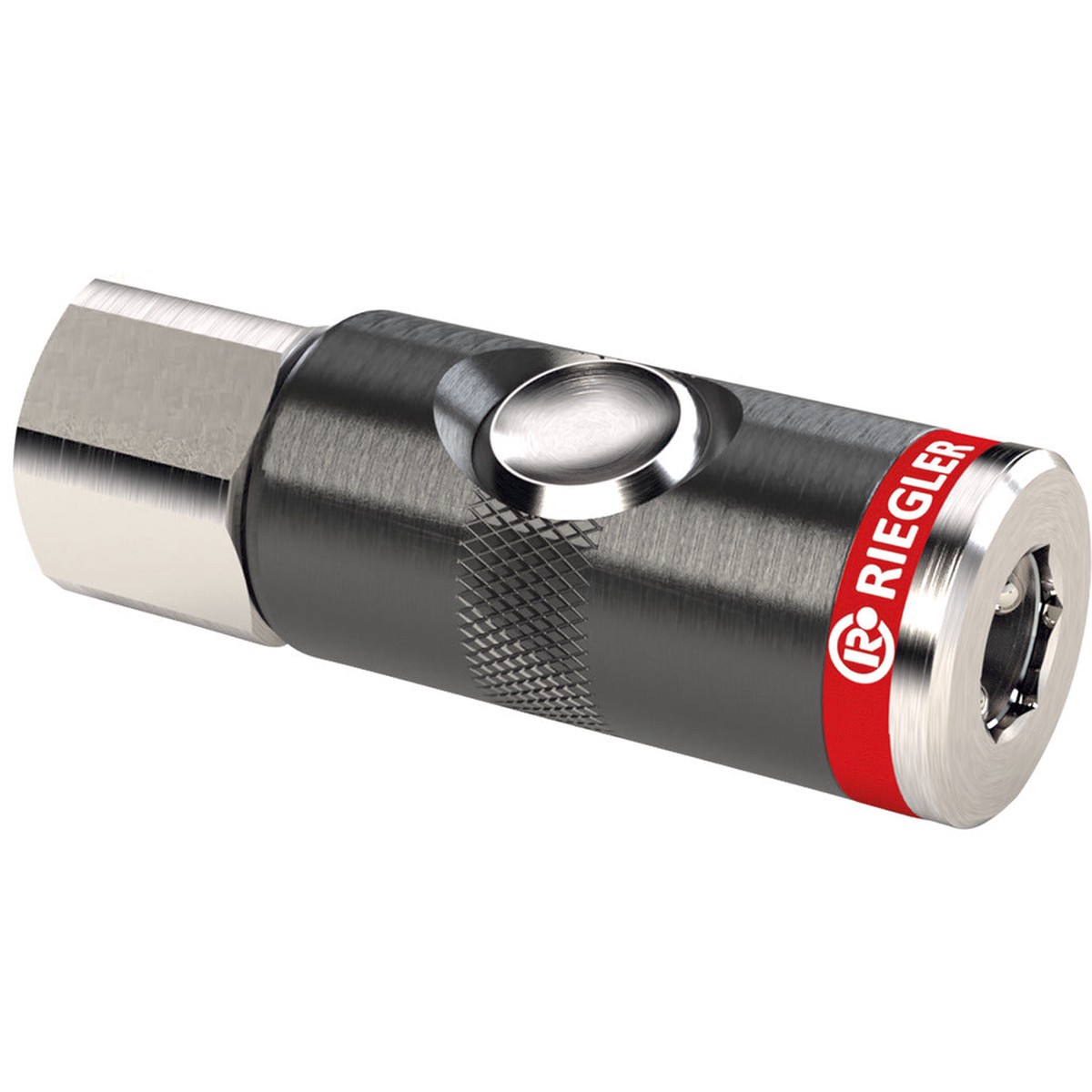

Push-button safety coupling NW 7.4, internal thread, rotatable
Sale!

Push-button safety coupling NW 7.4, internal thread, rotatable

Original price was: $31.54.Current price is: $25.23.

SKU: RVR75543982 Category:
  • high-quality, robust and durable, one-handed quick-release coupling in safety design
  • The first press vents the coupling, the plug remains secured in the coupling
  • after the second press the plug is released
  • This prevents the notorious “whiplash effect” and virtually eliminates the risk of injury to the operating personnel
  • the security version complies with the ISO standard DIN EN ISO 4414
  • Flow value measurement: at 6 bar and p = 1 bar
  • Knob and valve – hardened and galvanized steel
  • Internal parts – stainless steel 1.4310 / threaded piece – nickel-plated brass / sealing material – NBR
  • Max. operating pressure: 12 bar
  • Flow rate: 1600 l/min
  • Housing material: anodized aluminum
  • Brand: RIEGLER
  • Temperature range: -20 to +70 C
  • Ambient temperature: -20 to +70 C
