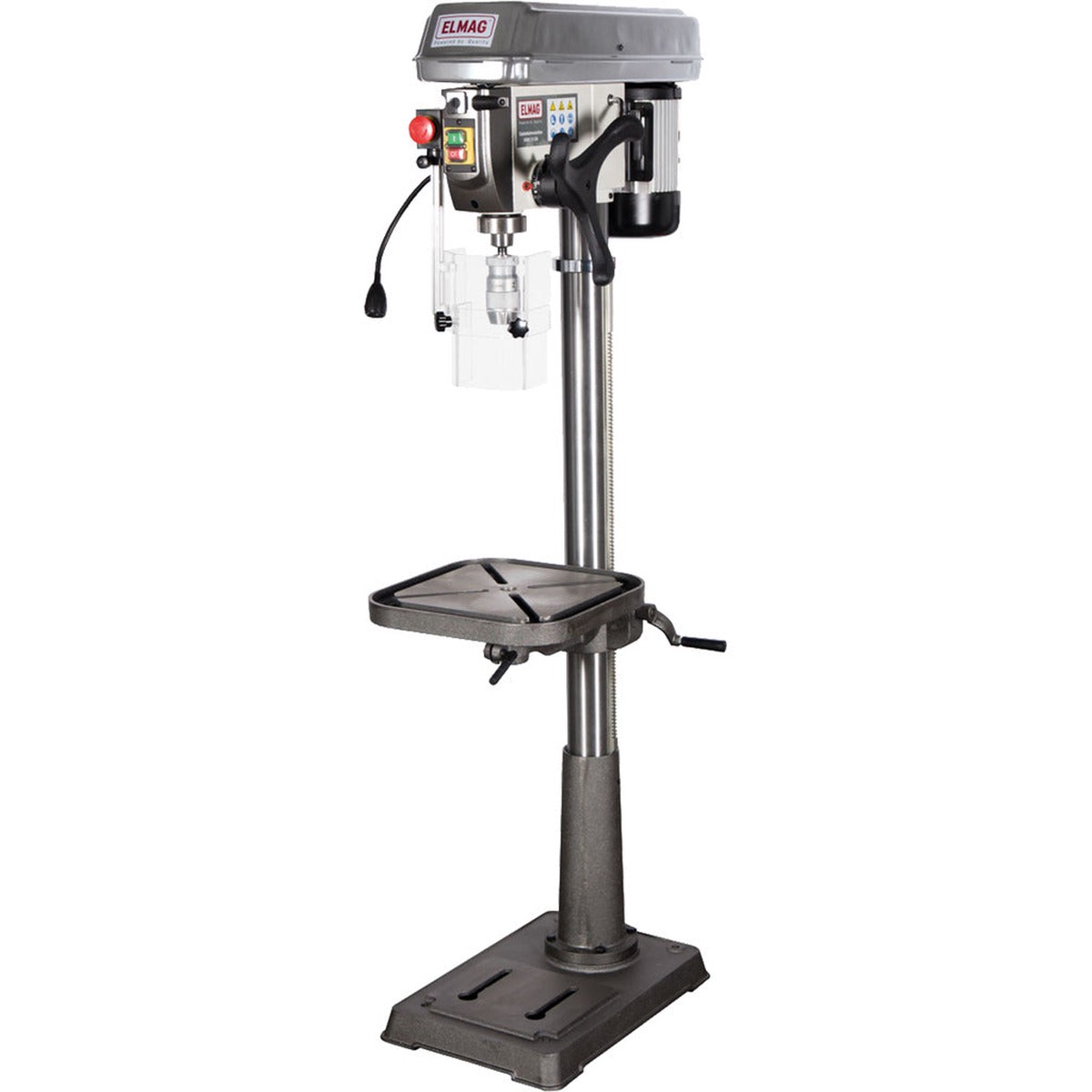

V-belt column drilling machine KBM 16 SN

• Super slim professional column drilling machine with a maximum spindle distance to the drilling table of 680 mm
• enables the machining of high workpieces and finished welded components
• Clamping grooves in the base plate increase the scope for high molded parts
• well suited for repairs in agriculture and for frame construction in metal construction companies
• stands out due to its solid design and good standard equipment
• Right and left rotation possible
• for drilling metals: use metal drill bits made of high-speed steel (HSS)
• For drilling hard metal or stainless steel: use metal drill bits with a titanium coating or made of a cobalt alloy
• For softer metals, use higher speed and reduce pressure before breakthrough
• For long holes, lift the drill several times and add coolant, take breaks if necessary

Standard equipment:

• Keyless drill chuck B 16, 1 – 16 mm
• Taper mandrel MK 2 / B 16
• Driving wedge
• tool set
• Operating instructions / CE

• Table dimensions lxw: 300 x 310 mm
• T-slot size: 16 mm
• Dimensions (l x w x h): 285 x 495 x 1610 mm
• Connection voltage: 400 V
• Projection: 195 mm
• Drilling capacity: steel 16 mm
• Drilling table rotatable: 180
• Drilling table tiltable: 45
• Speed: 100 – 2000 rpm
• Column diameter: 73 mm
• Weight: 64 kg
• Brand: Elmag
• Motor power: 550 W
• Quill stroke: 80 mm
• Spindle mount: MK-2
• Number of steps: 12
