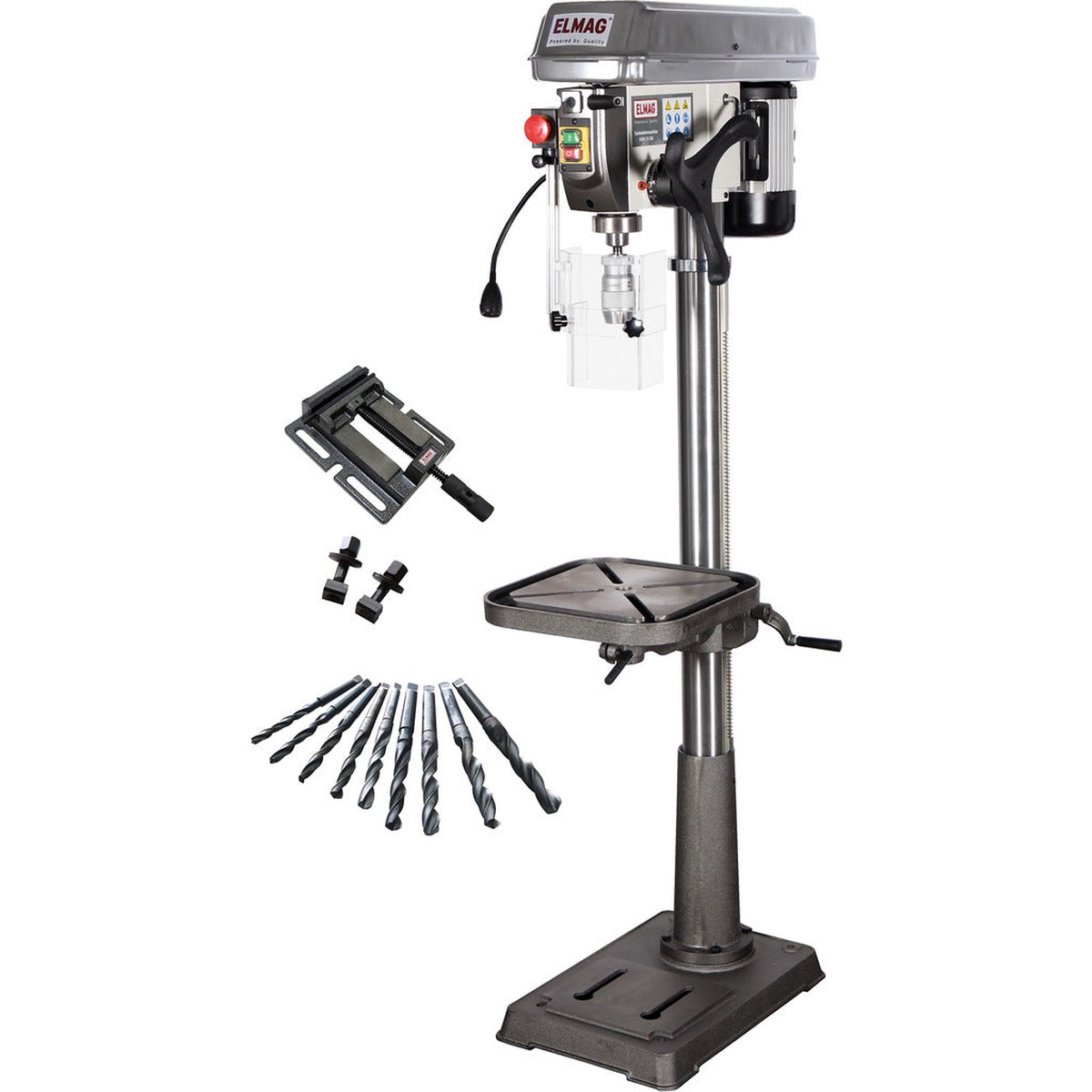

V-belt column drilling machine model KBM 25 SN – Set promotion

• With a maximum spindle distance to the drilling table of 715 mm, the KBM 25 SN enables the machining of high workpieces and finished welded components
• Clamping grooves in the base plate increase the scope for high molded parts
• The machine is therefore well suited for repairs in agriculture and for frame construction in metal construction companies
• stands out due to its solid design and good standard equipment
• for metals: use metal drill bits made of high-speed steel (HSS)
• Carbide or stainless steel: Metal drill bits with titanium coating or made of a cobalt alloy
• Punching: Mark the drilling location by marking with a scriber
• For HSS drills with cross grinding, punching is not necessary
• For large drilling diameters, pre-drill with a smaller drill bit
• Speed: to protect the drill, drill hard metal at low speed and with low pressure
• For softer metals, use higher speed – reduce pressure before breakthrough
• Keyless drill chuck B 16, 1 – 16 mm
• Taper mandrel MK 3 / B 16
• Driving wedge
• tool set
• Operating instructions / CE
• Spindle distance table: 60 – 715 mm
• Speed levels – 16
• Right/left rotation

Set consisting of: 1 x machine vice (5′ / 120 mm), 2 x clamping screws (16 mm), 1 x cutting oil spray and 1 x HSS drill bit cassette 14.5 – 30 mm (9 pieces)

• Table dimensions lxw: 355 x 355 mm
• T-slot size: 16 mm
• Dimensions (l x w x h): 270 x 480 x 1630 mm
• Connection voltage: 400 V
• Projection: 213 mm
• Max. drilling diameter steel: 25 mm
• Drilling table rotatable: 180
• Drilling table tiltable: 45
• Speed: 100 – 2000 rpm
• Column diameter: 80 mm
• Weight: 86 kg
• Brand: Elmag
• Motor power: 1,100 W
• Quill stroke: 80 mm
• Spindle mount: MK-3
